风能行业 Wind Industry

Gem has serviced the global wind turbine market for many years from 2009.
The manufacture and provision of high quality, safety critical fasteners with the ability to operate in some of the most hostile environments in the world has gained the company an unrivalled reputation in the wind turbine marketplace.
A strong market knowledge, strict auditing selection process of raw material suppliers, in-house technical expertise, commitment to quality, along with the ability to manufacture the first-class products make GEM an excellent supplier choice for fasteners to this demanding market.
Backed up by industry accreditation ,Each step of the production process from design, production, inspection to after-service is closely related to every wind customer. We can also develop and design special products according to customers’drawings, samples and demands to cater for customer’s requirement.

晋财自2009年为全球风能市场服务多年。

为世界上最恶劣的环境制造并提供高质量、安全级别紧固件，为本公司在风能市场上赢得了无与伦比的信誉。

丰富的市场知识，严格的原材料供应商选择过程，内部专业技术知识，质量的保证，以及制造一流产品的能力，使得晋财成为紧固件市场的优秀供应商。

通过行业认证，从螺丝、螺帽的设计、生产、检验以至售后服务，都紧贴着每一个风电客户，我们还可以根据客户提供的图纸或样品及要求进行开发特殊产品，迎合客户的每一个细节要求。

叶片螺栓

Blade to Hub Studs

晋财制造并提供适用于叶片螺栓的各式连接件。

该范围包括了细杆叶片螺栓（螺纹有效直径滚制）和缩杆叶片螺栓。直径范围从M20到M64，等级为8.8和10.9，或者按照客户的特殊要求。

A manufactured range of studs suitable for ‘blade-to-hub’ connections are offered by GEM.
This range includes scant shank (thread roll effective diameter) and waisted studs. Diameters range from M20 to M64 and in property classes 8.8 and 10.9, or in accordance with customer special requirements.

机舱螺栓		Wind power cabin Bolts
晋财生产一系列直径从M16到M64的ISO螺栓， 8.8， 10.9和12.9级的ISO,DIN,GB,ASTM固定螺栓，以及特殊要求定制螺栓。本公司按客户指定规格提供各类加工螺栓。此外，晋财还生产8.8和10.9级的直径从M16到M80的一系列特殊叶片螺栓，以及按客户特殊要求定制的螺栓。		GEM manufacture a range of ISO bolts in diameters M16 to M64 plus a range of ISO、DIN、GB、ASTM setscrews in property classes 8.8, 10.9 and 12.9 or in accordance with special requirements. The company also offers a range of machined studs to customer specifications. In addition, GEM also manufacture a range of special studs in diameters M16 to M80 and in property classes 8.8 and 10.9 or in accordance with customer special requirements

塔筒螺栓		Tower Construction
对塔筒的紧固件，我们晋财提供尺寸范围从M16到M76。晋财正在努力开发各种符合客户设计的塔筒特殊紧固件。另外，晋财还制造并供应符合ISO，DIN,GB，ASTM标准的螺栓、螺母和垫片配件。表面处理有达克罗，久美特，镀锌，热镀锌等。		For the standard ’flange-jointed’ design of the tower,GEM possess full TUV Nord approval for the manufacture and supply of EN products in hot-dip galvanized finish. Sizes range from M16 to M76. GEM can also offer various special fastener assemblies to suit customer’s design for other forms of tower In addition, GEM can manufacture and supply ISO、DIN、GB、ASTM Bolts, Nuts、washer assemblies which can be supplied with Dacromet、Geomet、Sherardized、Hot Dip Galvanized flake coatings.

基座螺栓

Foundation Fixings

晋财制造专门为风力发电机设计的一系列地脚螺栓。
地脚螺栓的原料为合金钢材料，直径从M24到M76，等级为10.9。我们提供各种保护性涂层，包括热镀锌，达克罗，久美特。

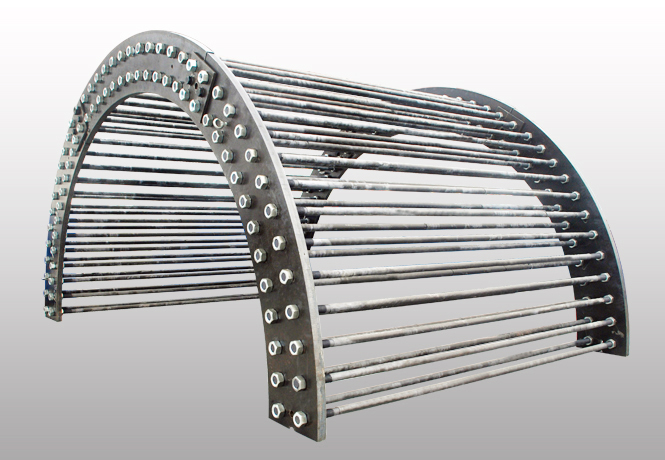

各种组装的一体成型吊架也可以按客户要求提供。

GEM manufacture a range of anchor fasteners designed specifically for wind turbine towers.
The studs are manufactured from high tensile steel ranging in diameter from M24 to M64 and grades up to 10.9. We offer various sacrificial coatings including Hot Dip Galvanized, Dacromet、Geomet. Various fabricated ‘one piece’ cradles can also be supplied to customer specifications.

产品展示 Products
